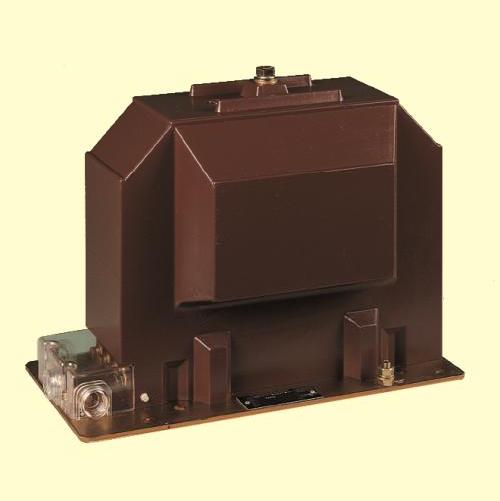

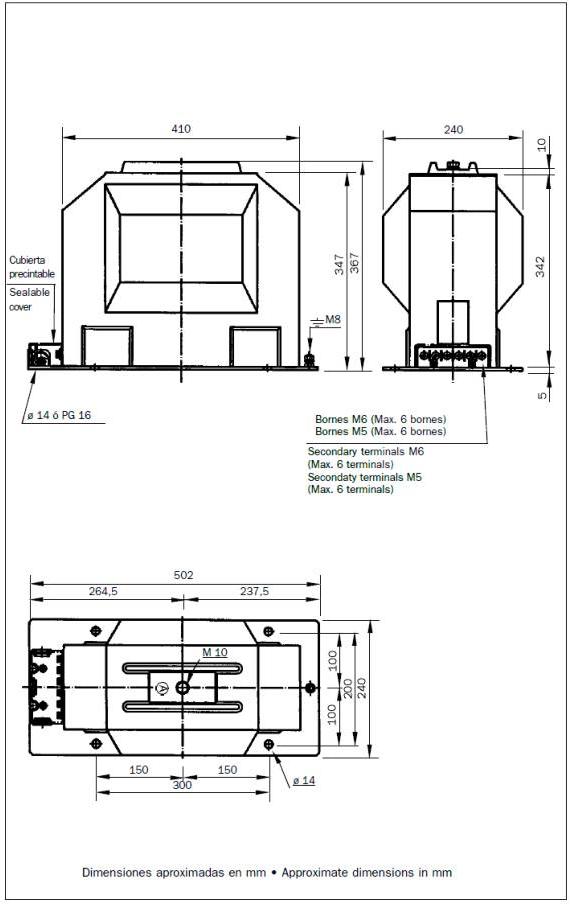

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Tensión UCS-36 Media Tensión. Servicio Exterior APLICACION/APPLICATION Transformador de tensión de un polo aislado (conexión fase- tierra), tipo soporte, diseñado para servicio interior y encapsulado en resina.Para medida y/o protección. Construible bajo normas UNE, CEI, VDE, IEEE. Otras normas o características especiales bajo consulta. One pole insulated voltage transformer (connection phase- earth), support type, valid for indoor service. Cast resin. Designed for measurement and/or protection. Manufactured as per standards UNE, IEC, VDE, IEEE. Other standards or special technical specifications on request. AISLAMIENTO/ INSULATION Vn:36kV ; BIL: 170kV (IEC) Vn:34.5kV ; BIL: 200kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 367mm/14.45” Ancho/Width: 240mm/9.45” Profundidad/Depth: 410mm/16.14” PESO/WEIGHT  76 Kg/167.55 Lbs PAR DE APRIETE/TORQUE  2,6 m x Kg (M12) 0,25 m x Kg (M5 ó M6) Descargar PDF
