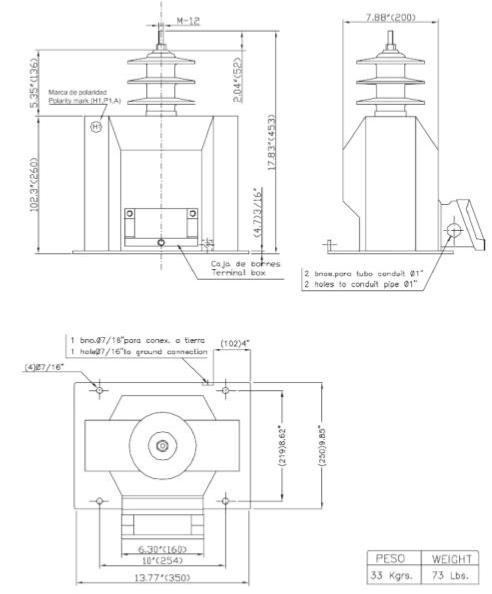

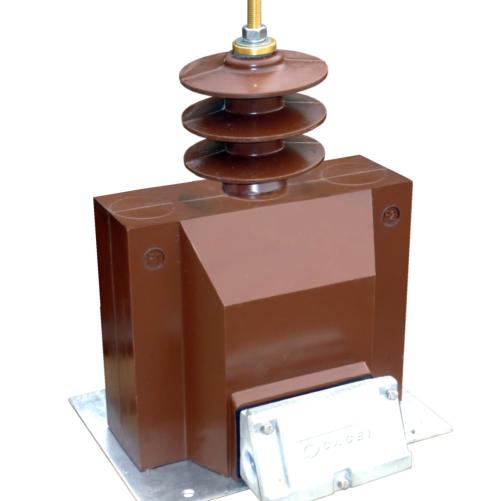

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Tensión URL-17 Media Tensión. Servicio Exterior APLICACION/APPLICATION Transformador de tensión para conexión entre fase y tierra (un polo aislado), tipo soporte, diseñado para servicio intemperie. Encapsulado en resina con envolvente exterior en resina cicloalifática de gran línea de fuga destinados a medida y/o protección. Construibles bajo normas IEC e IEEE. Otras normas o características especiales bajo consulta. One pole insulated voltage transformer (connection phase- earth),support type, valid for outdoor service. Cast resin with cycloaliphatic resin casing with a large leakage line. Designed for measurement and/or protection. Manufactured as per standard IEC and IEEE. Other standards or special technical specification on request. AISLAMIENTO/ INSULATION Vn:17,5kV ; BIL: 95kV (IEC) Vn:15kV ; BIL: 110kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 453/17,83” Ancho/Width: 350/13,77” Profundidad/Depth: 310/12,2” PESO/WEIGHT  33 Kg/73 Lbs LINEA DE FUGA / CREEPAGE DISTANCE 520mm / 20,47” Descargar PDF
