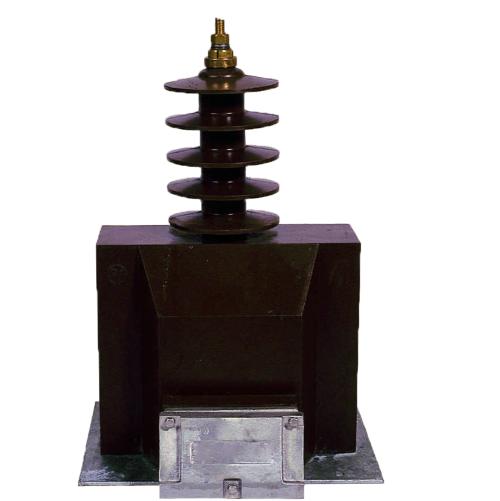

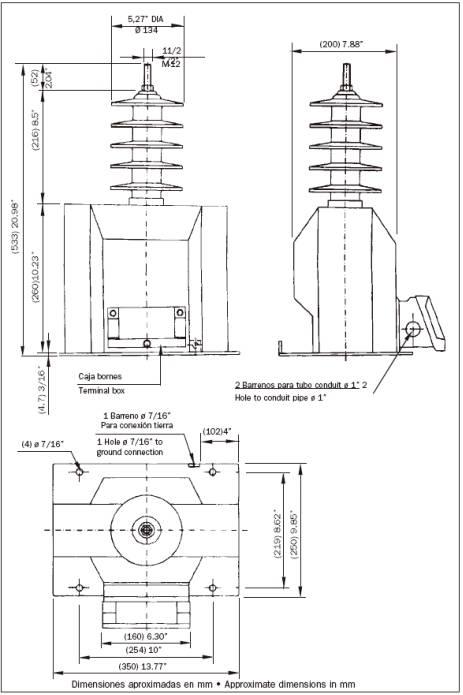

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Tensión URL-24 Media Tensión. Servicio Exterior APLICACION/APPLICATION Transformador de tensión para conexión entre fase y tierra (un polo aislado), tipo soporte, diseñado para servicio intemperie. Encapsulado en resina con envolvente exterior en resina cicloalifática de gran línea de fuga destinados a medida y/o protec-ción. Construible bajo normas UNE, CEI, VDE, IEEE. Otras normas o características especiales bajo consulta One pole insulated voltage transformer (connection phase- earth), support type, valid for outdoor service. Cast resin with cycloaliphatic resin casing with a large leakage line. Designed for measurement and/or protection. Manufactured as per standards UNE, IEC, VDE, IEEE. Other standards or special technical specifications on request. AISLAMIENTO/ INSULATION Vn:24kV ; BIL: 125kV (IEC) Vn:25.5kV ; BIL: 150kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 533mm/20.98” Ancho/Width: 350mm/13.77” Profundidad/Depth: 200mm/7.88” PESO/WEIGHT  35 Kg/77 Lbs LINEA DE FUGA / CREEPAGE DISTANCE 1,4 m x kg (Tornillo 1/2”) 0,4 m x kg (Tornillo 1/4”) Descargar PDF
