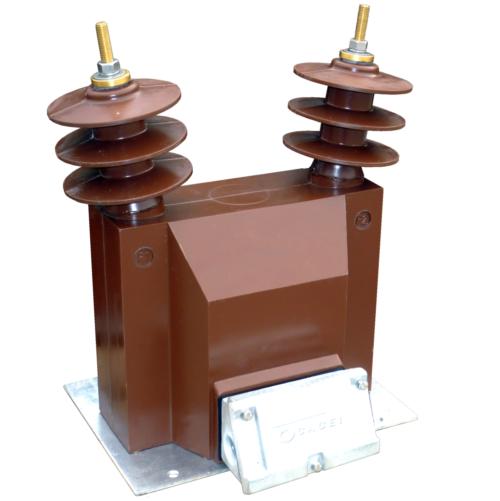

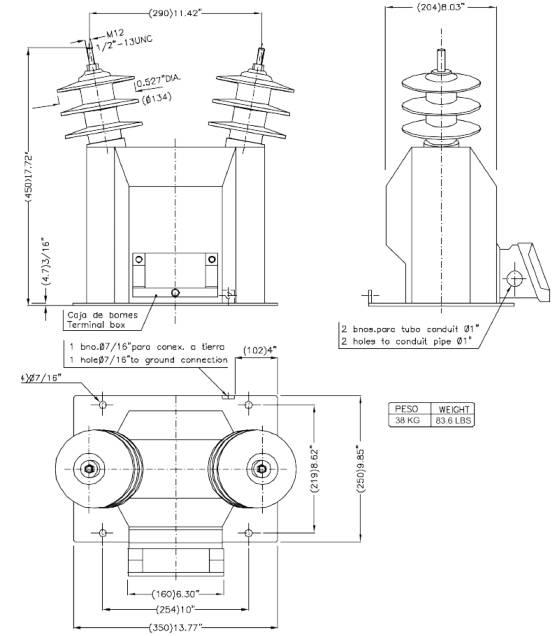

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Tensión VRL-17 Media Tensión. Servicio Exterior APLICACION/APPLICATION Transformador de tensión para conexión entre fases (dos polos aislados), tipo soporte, diseñado para servicio intemperie. Encapsulado en resina con envolvente exterior en resina cicloalifática de gran línea de fuga destinados a medida y/o protección. Construibles bajo normas IEC e IEEE. Otras normas o características especiales bajo consulta. Two poles insulated voltage transformer (connection phase- phase),support type, valid for outdoor service. Cast resin with cycloaliphatic resin casing with a large leakage line. Designed for measurement and/or protection. Manufactured as per standard IEC and IEEE. Other standards or special technical specification on request. AISLAMIENTO/ INSULATION Vn:17,5kV ; BIL: 95kV (IEC) Vn:15kV ; BIL: 110kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 450/17,72” Ancho/Width: 350/13,77” Profundidad/Depth: 310/12,2” PESO/WEIGHT  38 Kg/83,6 Lbs LINEA DE FUGA / CREEPAGE DISTANCE 600mm / 23,62” Descargar PDF
