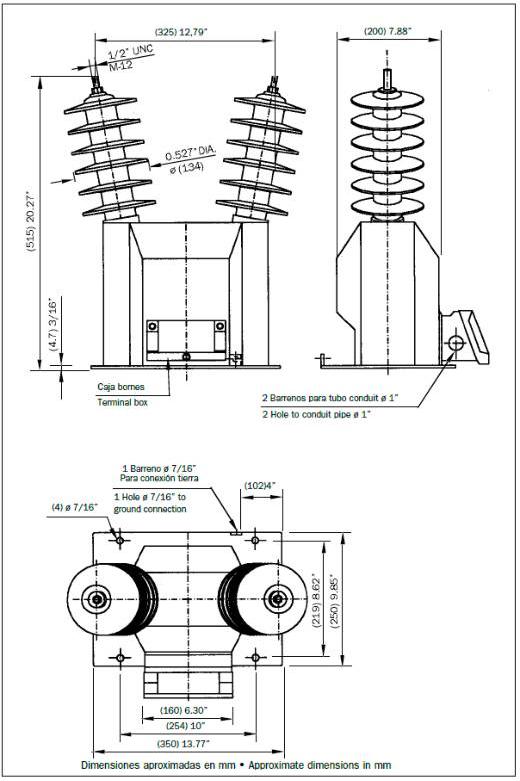

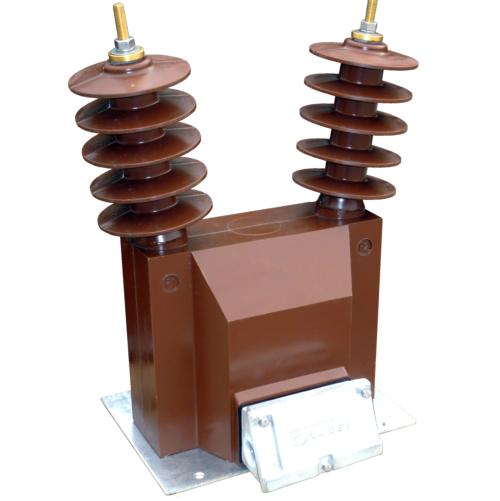

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Tensión VRL-24 Media Tensión. Servicio Exterior APLICACION/APPLICATION Transformador de tensión para conexión entre fases (dos polos aislados), tipo soporte, diseñado para servicio intemperie. Encapsulado en resina con envolvente exterior en resina cicloa- lifática de gran línea de fuga destinados a medida y/o protección. Construible bajo normas UNE, CEI, VDE, IEEE. Otras normas o características especiales bajo consulta Two poles insulated voltage transformer (connection phase- phase), support type, valid for outdoor service. Cast resin with cycloaliphatic resin casing with a large leakage line. Designed for measurement and/or protection. Manufactured as per standards UNE, IEC, VDE, IEEE. Other standards or special technical specifications on request.. AISLAMIENTO/ INSULATION Vn: 24kV ; BIL: 125kV (IEC) Vn: 25kV ; BIL: 150kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 515mm/20,27” Ancho/Width: 325mm/12,79” Profundidad/Depth: 200mm/7,88” PESO/WEIGHT  40 Kg/88 Lbs PAR DE APRIETE/TORQUE  2,6 m x Kg (Tornillo 1/2”) 0,4 m x Kg (Tornillo 1/4”) Descargar PDF
