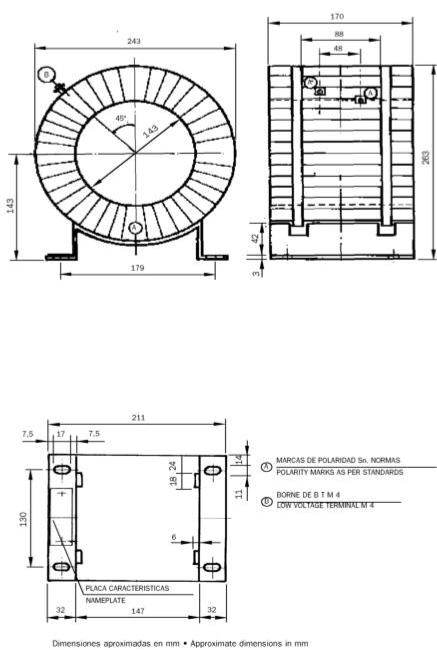

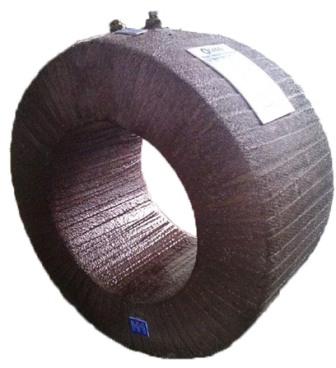

C.A. CONSTRUCCIONES ELECTRICAS IRIBARREN. Transformador de Corriente WCT-15 Baja Tensión. Servicio Interior/Exterior Descargar PDF APLICACION/APPLICATION Transformador de intensidad, tipo toroidal, diseñado para  servicio interior, para trabajar al aire o en aceite. Para medida  y/o protección. Construibles bajo normas UNE, CEI, VDE, IEEE.  Otras normas o características especiales bajo consulta.  Current transformer, toroidal type, valid for indoor service, to  work in open air or in oil. Designed for measurement and/or  protection. Manufactured as per standards UNE, IEC, VDE, IEEE. Other standards or special technical specifications, on request.  AISLAMIENTO/ INSULATION Vn:0,72kV ;   BIL:  -  (IEC) Vn:0,6kV ; BIL: 10kV (IEEE) DIMENSIONES/DIMENSIONS Altura/Height: 263mm/10.36” Ancho/Width: 243mm/9,57” Profundidad/Depth: 170mm/6.69” PESO/WEIGHT  30Kg/66 Lbs PAR DE APRIETE/TORQUE  0,1 kg x m (M4)
